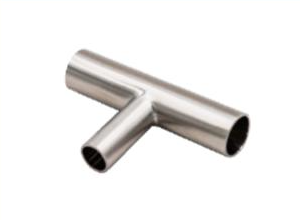

自动管焊接：异径三通
$18.19–$65.60

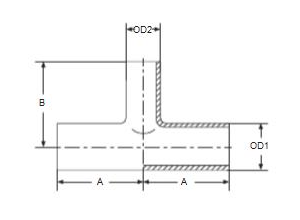

| 英寸OD1×OD2（mm） | 英寸毫米（A） | 英寸毫米（B） | 公斤 | |
| 3/4″× 1/2″ 19.05 × 12.7 | 2.00 50.8 | 2.00 50.8 | 0.070 | |
| 1″× 1/ 2“12.7×6.53 | 二点一二六五四 | 二点一二六五四 | 0.080 | |
| 1″× 3/4″ 25.4 × 19.05 | 二点一二六五四 | 二点一二六五四 | 0.090 | |
| 1.1./2″× 1/2“38.1×12.7 | 2.374 60.3 | 2.374 60.3 | 0.150 | |
| 1.1./2″×3/4″ 38.1 × 19.5 | 2.374 60.3 | 2.374 60.3 | 0.170 | |
| 1.1./2″×1″ 38.1 × 25.4 | 2.374 60.3 | 2.374 60.3 | 0.180 | |
| 2″×1 /2″ 50.8 × 12.7 | 二点八七四七三 | 2.626 66.7 | 0.250 | |
| 2″×3/4″ 50.8 × 19.05 | 二点八七四七三 | 2.626 66.7 | 0.290 | |
| 2″× 1” 50.8 × 25.4 | 二点八七四七三 | 2.626 66.7 | 0.320 | |
| 2″×1.1./2″50.8 × 38.1 | 二点八七四七三 | 2.626 66.7 | 0.360 | |
| 2.1/2″×1/2″ 63.5 × 12.7 | 3.126 79.4 | 二点八七四七三 | 0.360 | |
| 2.1/2″×3/4″ 63.5 × 19.05 | 3.126 79.4 | 二点八七四七三 | 0.380 | |
| 2.1/2″×1″ 63.5 × 25.4 | 3.126 79.4 | 二点八七四七三 | 0.400 | |
| 2.1/2″×1.1./2″ 63.5 × 38.1 | 3.126 79.4 | 二点八七四七三 | 0.400 | |
| 2.1/2″×2″ 63.5 × 50.8 | 3.126 79.4 | 二点八七四七三 | 0.530 | |
| 3″× 1/ 2“76.2×12.7 | 3.374 85.7 | 3.126 79.4 | 0.640 | |
| 3.”× 3/4″ 76.2 × 19.5 | 3.374 85.7 | 3.126 79.4 | 0.650 | |
| 3″× 1” 76.2 × 25.4 | 3.374 85.7 | 3.126 79.4 | 0.660 | |
| 3″×1.1./2″ 76.2 × 38.1 | 3.374 85.7 | 3.126 79.4 | 0.680 | |
| 3″× 2“76.2×50.8 | 3.374 85.7 | 3.126 79.4 | 0.720 | |
| 3″×2.1/2″ 76.2 × 63.5 | 3.374 85.7 | 3.126 79.4 | 0.740 | |
| 4″× 1/2” 101.6 × 12.7 | 4.126 104.8 | 3.626 92.1 | 0.910 | |
| 4″× 3/4″101.6 × 19.05 | 4.126 104.8 | 3.626 92.1 | 0.920 | |
| 4″× 1″101.6×25.4 | 4.126 104.8 | 3.626 92.1 | 0.930 | |
| 4″×1.1./2″ 101.6 × 38.1 | 4.126 104.8 | 3.626 92.1 | 0.950 | |
| 4″×2″ 101.6 × 50.8 | 4.126 104.8 | 3.874 98.4 | 0.990 | |
| 4″×2.1/2″ 101.6 × 63.5 | 4.126 104.6 | 3.874 98.4 | 1.010 | |
| 4″× 3″101.6 × 76.2 | 4.126 104.6 | 3.874 98.4 | 1.040 |
SF1：内部机械抛光至0.5um（RA20），外部机械抛光至0.8um（RA32）
SF4：内部电抛光至0.375um（RA15），外部机械抛光至0.8um（RA32）
材料：不锈钢316L，按照严格的ASME-BPE和ASTM A270 S2规范制造
